750W Brushless Motor
140km Mileage
48V/30Ah Lithium Battery
25km/h Default Speed
CST 20*4.0 Fat Tires
150kg Payload
Free Shipping
30-Day Returns
1 Year Warranty

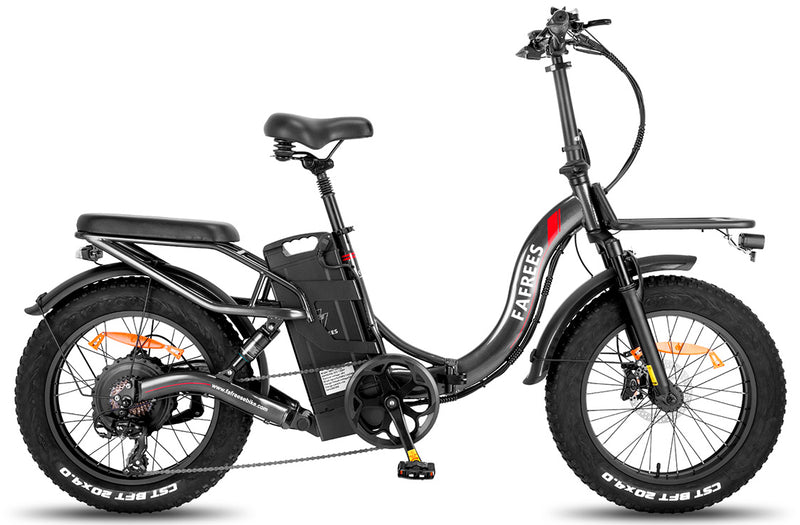

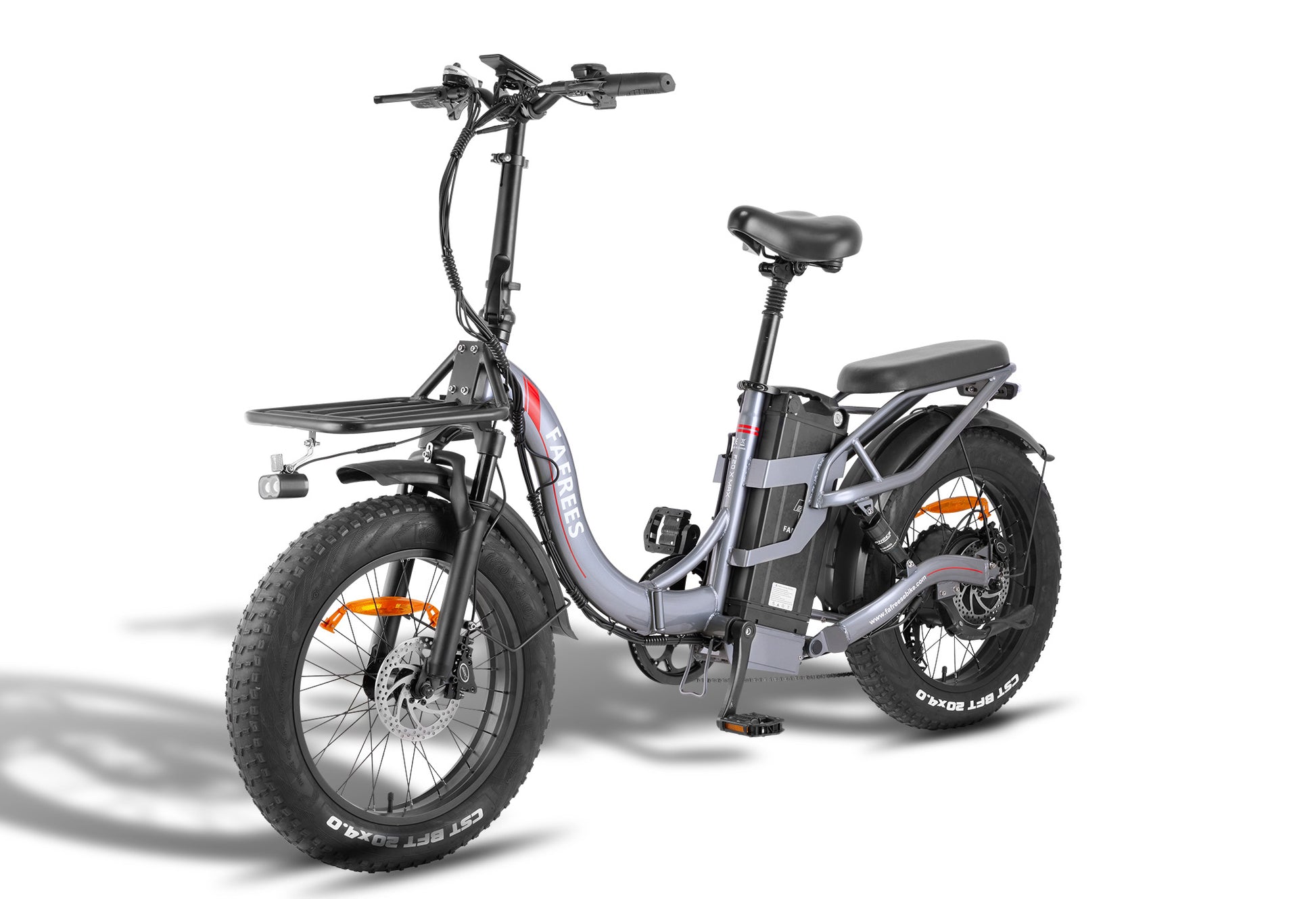

EU-F20 X-Max

Go further, carry more

EU-F20 X-Max

28 Reviews
€1,699.00
€1,699.00 €1,899.00
Ausverkauft
Use code BLACK11 – Now only €1512

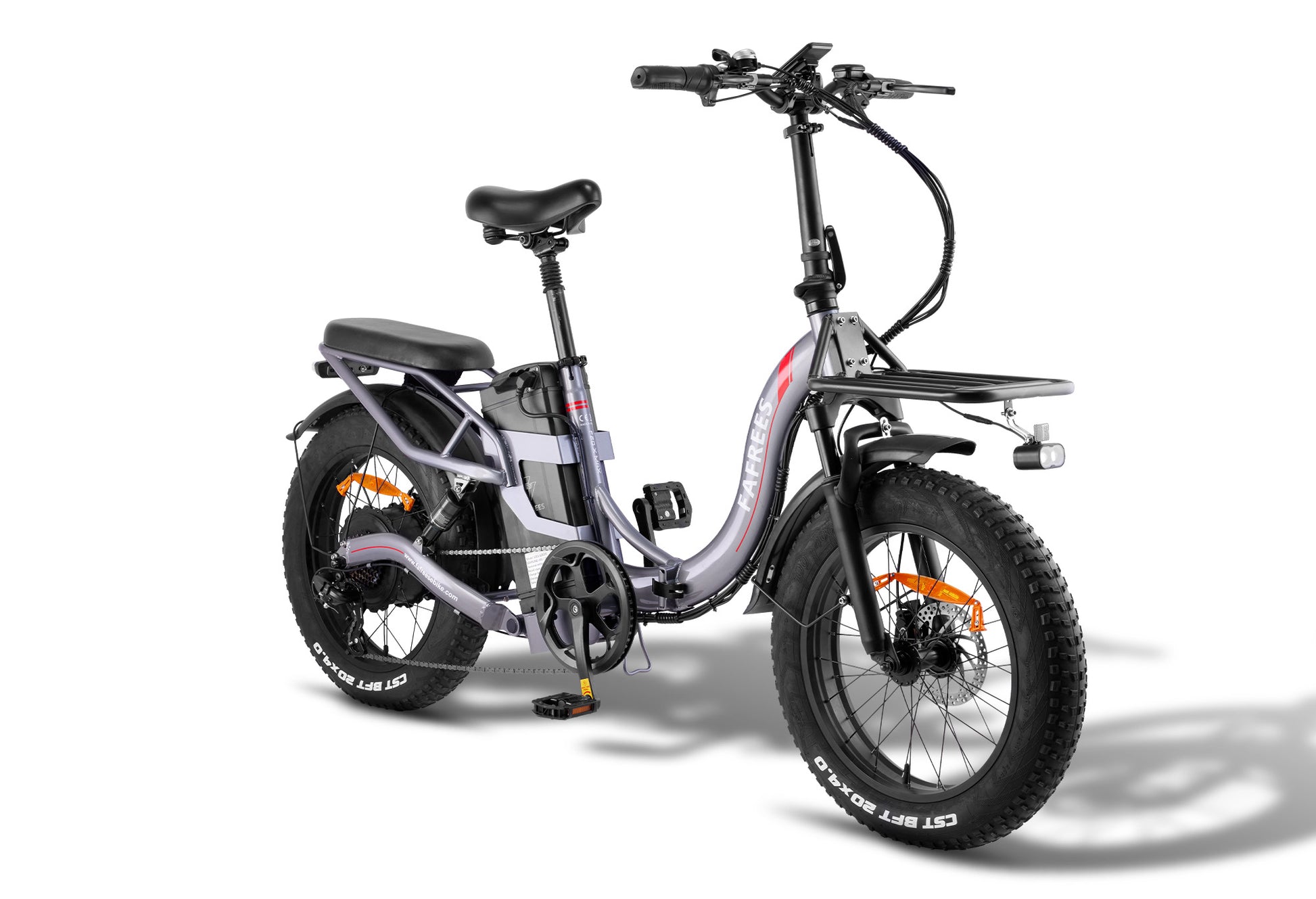

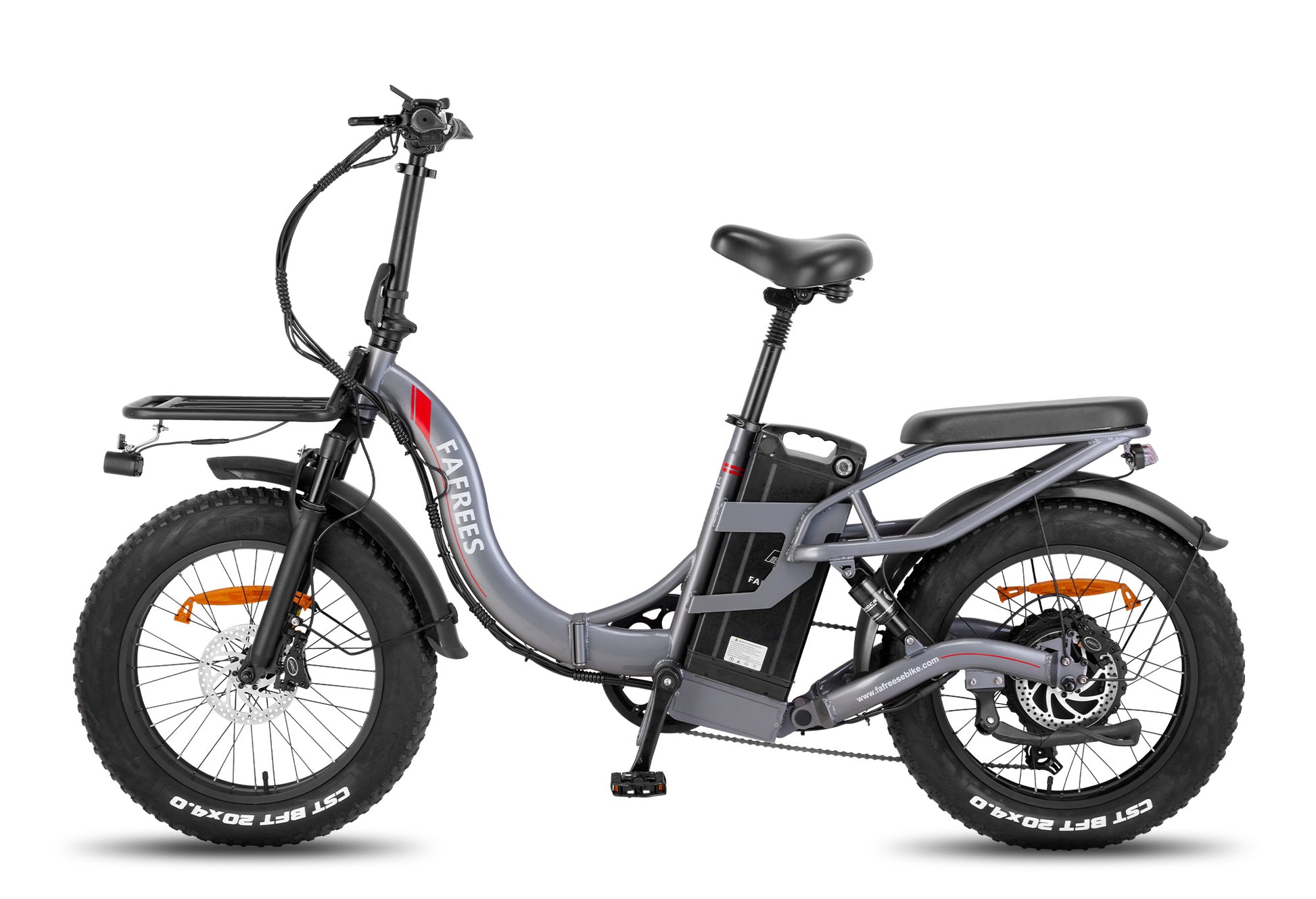

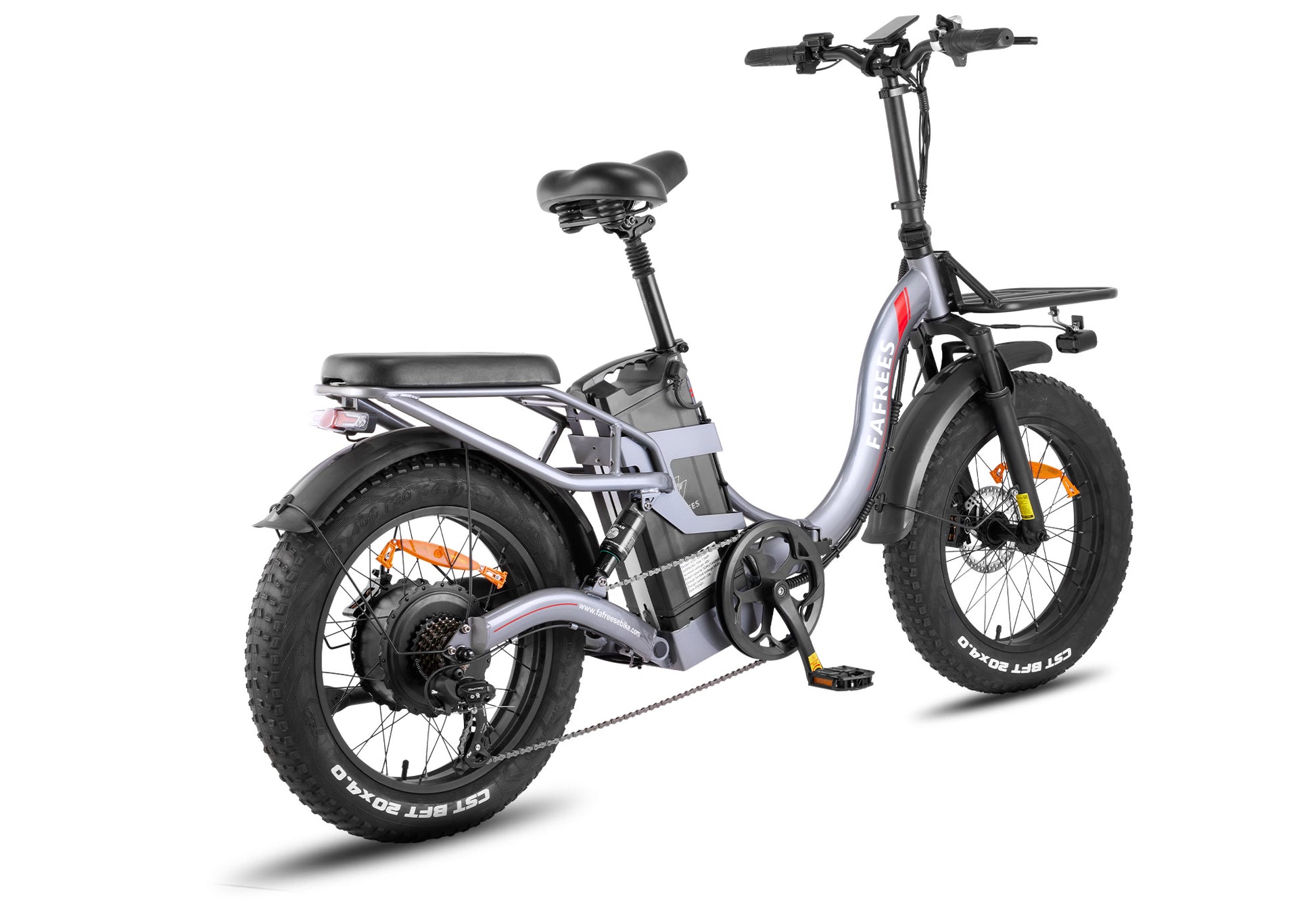

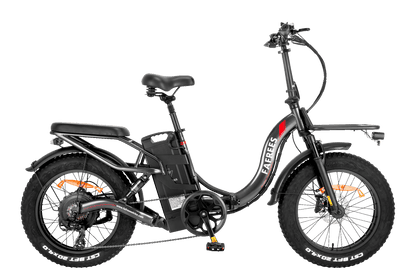

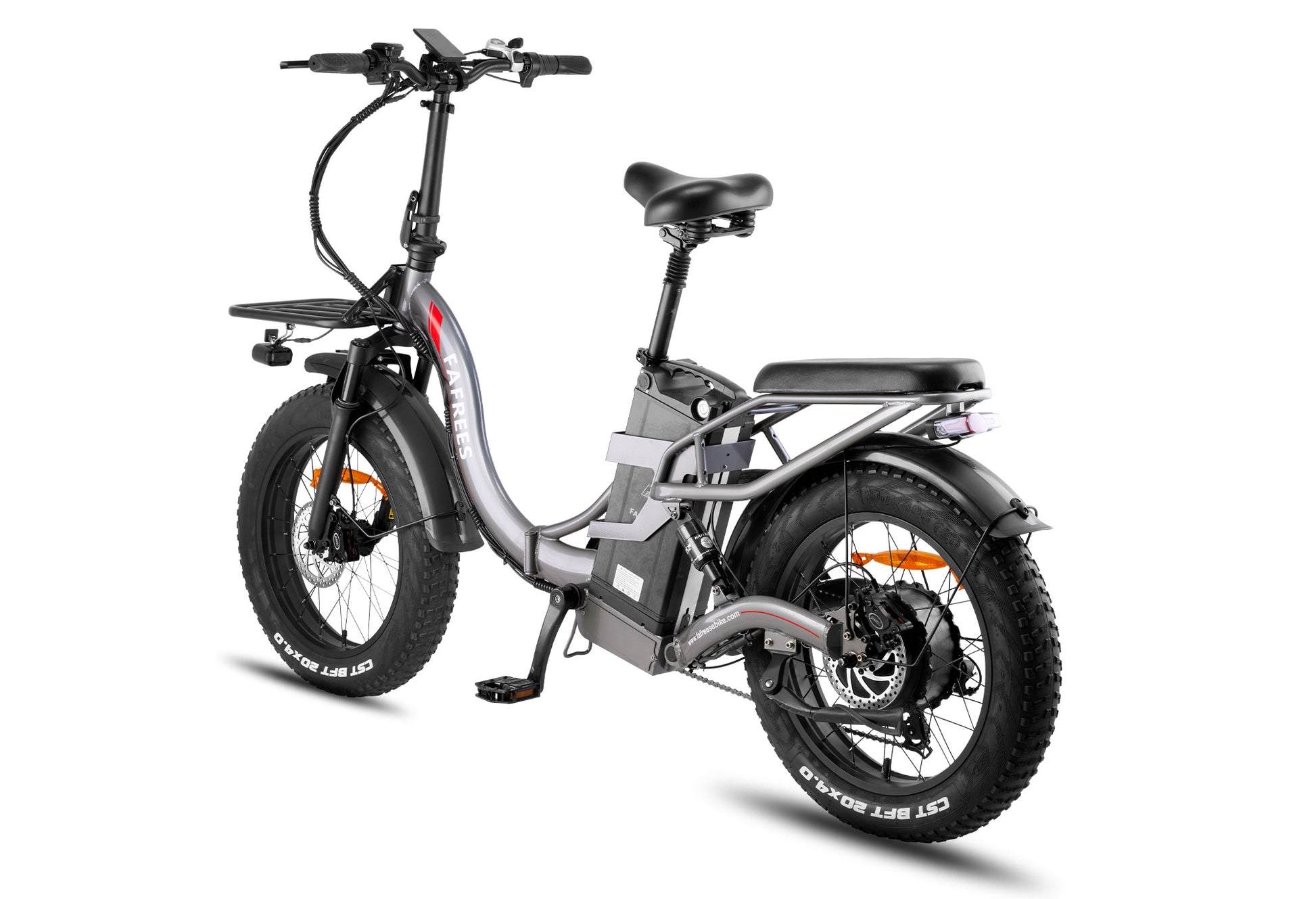

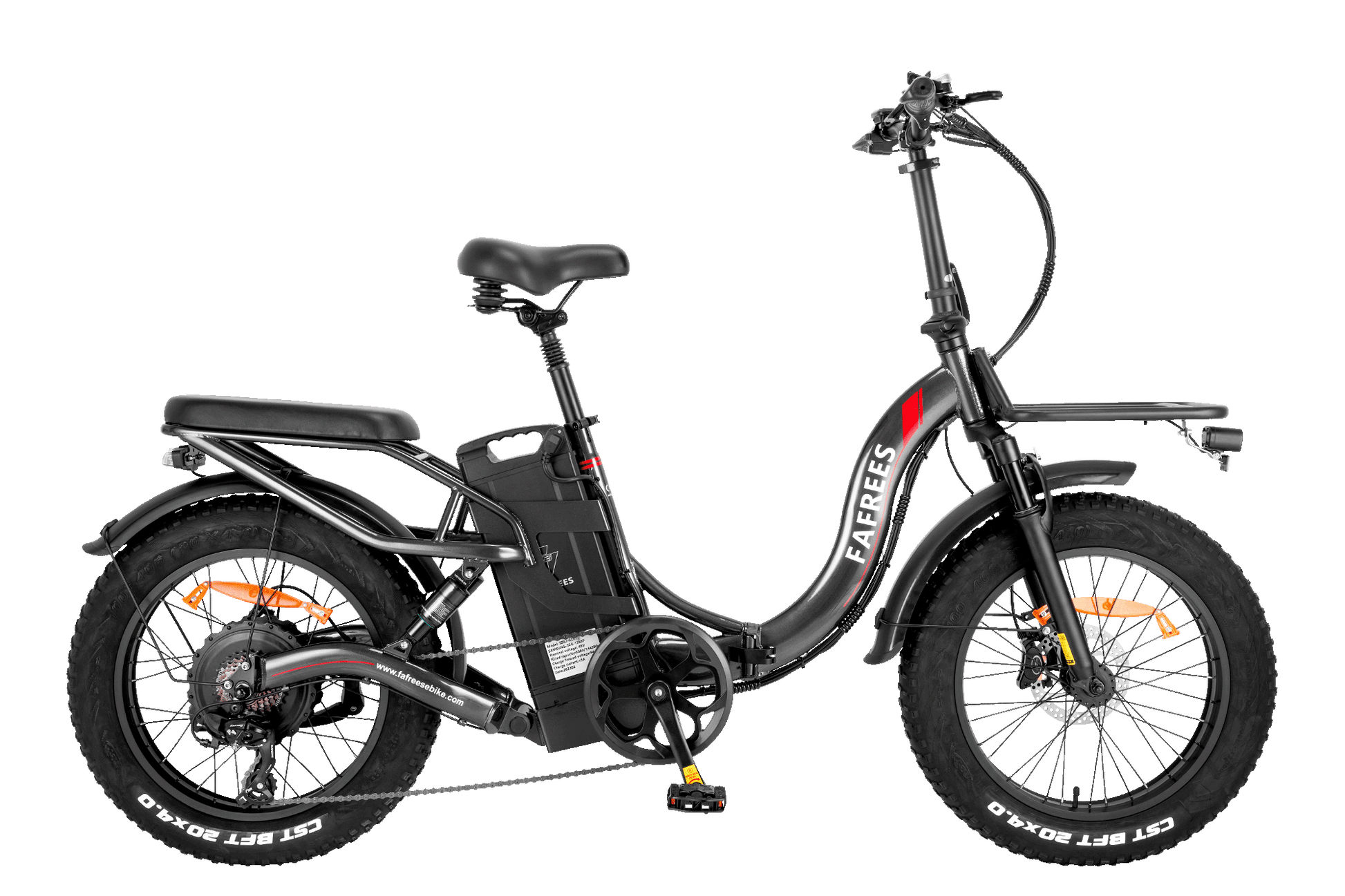

Color: Grey

Compatible Accessories

  • 12L Waterproof Bicycle Bag (Save more with ebike BUT not for separate sale)
    12L Waterproof Bicycle Bag (Save more with ebike BUT not for separate sale)
    €19.90
  • 35L Large Capacity Bicycle Bag (Save more with ebike BUT not for separate sale)
    35L Large Capacity Bicycle Bag (Save more with ebike BUT not for separate sale)
    €39.00
  • Combination Bicycle Chain Lock (Save more with ebike BUT not for separate sale)
    Combination Bicycle Chain Lock (Save more with ebike BUT not for separate sale)
    €19.90
  • Cityzen Helmet (Save more with ebike BUT not for separate sale)
    Cityzen Helmet (Save more with ebike BUT not for separate sale)
    €39.00
  • E-mark Certified Rearview Mirrors (Save more with ebike BUT not for separate sale)
    E-mark Certified Rearview Mirrors (Save more with ebike BUT not for separate sale)
    €29.90
  • Portable Electric Air Pump(Save more with ebike BUT not for separate sale)
    Portable Electric Air Pump(Save more with ebike BUT not for separate sale)
    €99.00
Size & spec
EU warehouse · Ships in 2 working days · 2–13 days deliveryShipping details
Vollständige Details anzeigen
Recommended for you
Battery for Ebike

Battery for Ebike

€249.00
Shop now
color_Satin Black

EU-F20 Master

€1,359.00
Shop now
color_Gunmetal Black

EU-FF20 Polar HS

€1,359.00
Shop now
Why you’ll love this
Unleash the Power of Possibility. With a massive 30Ah battery, powerful 750W motor, triple suspension, and a compact foldable design, the F20 X-Max is built for long-distance comfort and off-road confidence.
Explore the features

F20 X-Max E-bike

30Ah Samsung Battery
Packed with 21700 Samsung cells (1440Wh), it delivers up to 140km range per charge.
High-Torque 750W Motor
Feel the power with a peak 980W output and strong 65Nm torque for confident, controlled riding.
Hydraulic Braking
Front and rear hydraulic brakes with 160mm rotors provide strong grip and fast response.
Display with USB Port
Easily view speed, range, and gear with the large LCD screen—plus, charge your phone on the go.
Triple Suspension
A complete suspension setup—front, rear, and seatpost—smooths out every bump for long-time riding.
Power your day with a foldable fat-tire e-bike built for distance, comfort, and utility.
30Ah Samsung Battery
Packed with 21700 Samsung cells (1440Wh), it delivers up to 140km range per charge.
High-Torque 750W Motor
Feel the power with a peak 980W output and strong 65Nm torque for confident, controlled riding.
Hydraulic Braking
Front and rear hydraulic brakes with 160mm rotors provide strong grip and fast response.
Display with USB Port
Easily view speed, range, and gear with the large LCD screen—plus, charge your phone on the go.
Triple Suspension
A complete suspension setup—front, rear, and seatpost—smooths out every bump for long-time riding.

More Details

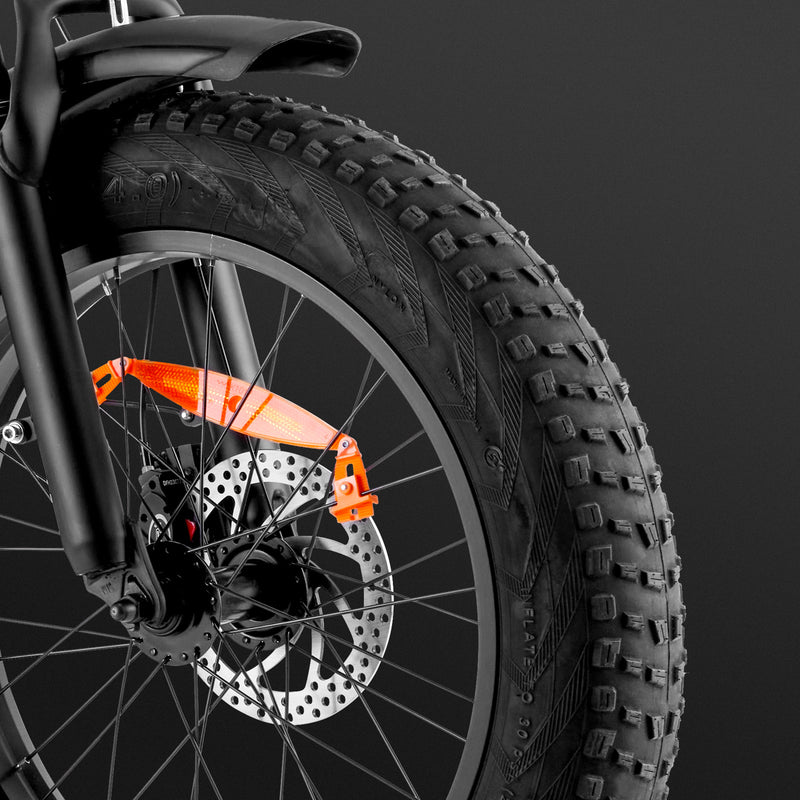

CST 20×4.0" Fat Tires: Wide 4.0" tires offer extra grip and stability on snow, sand, mud, gravel, and city roads alike.

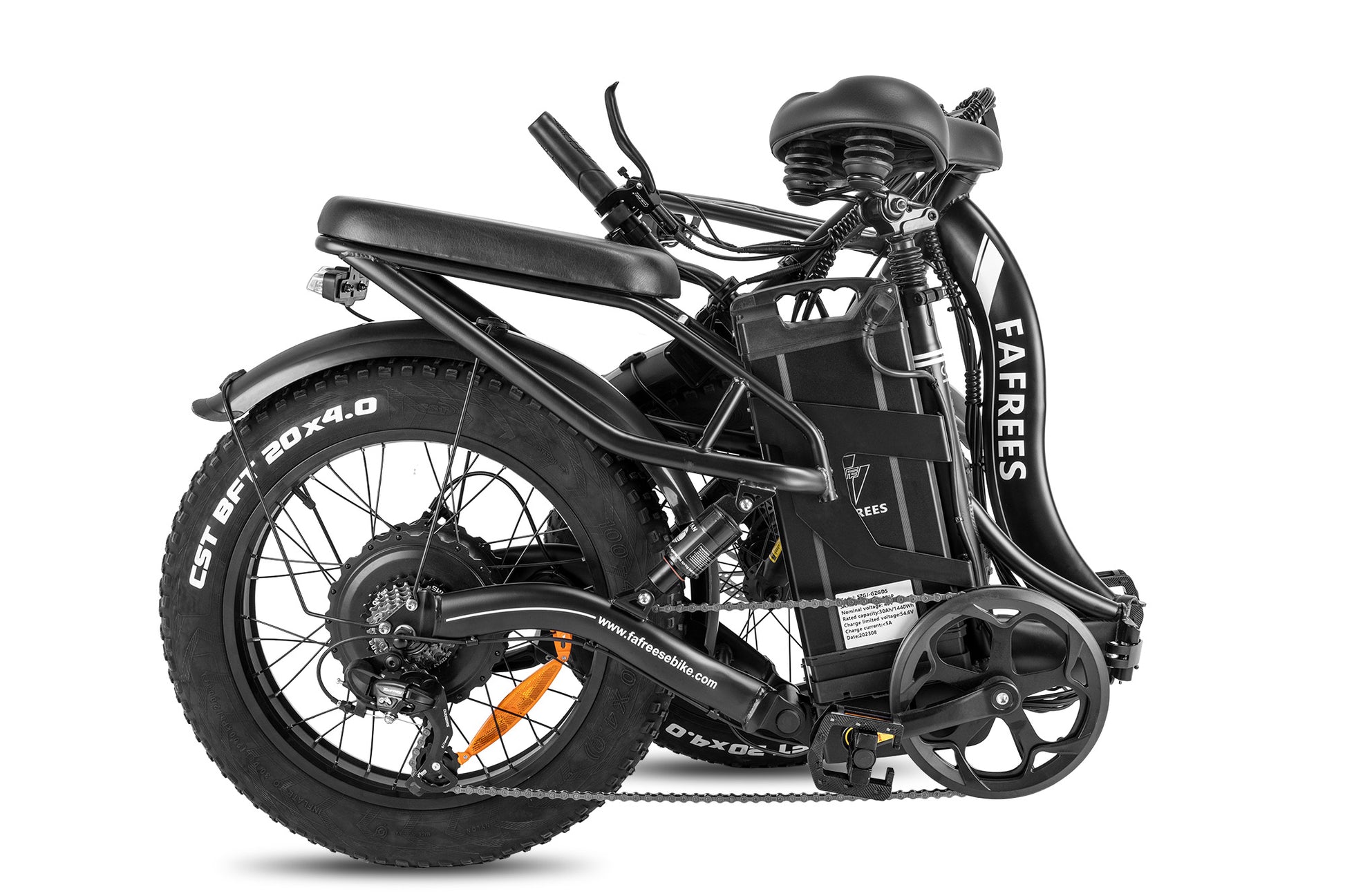

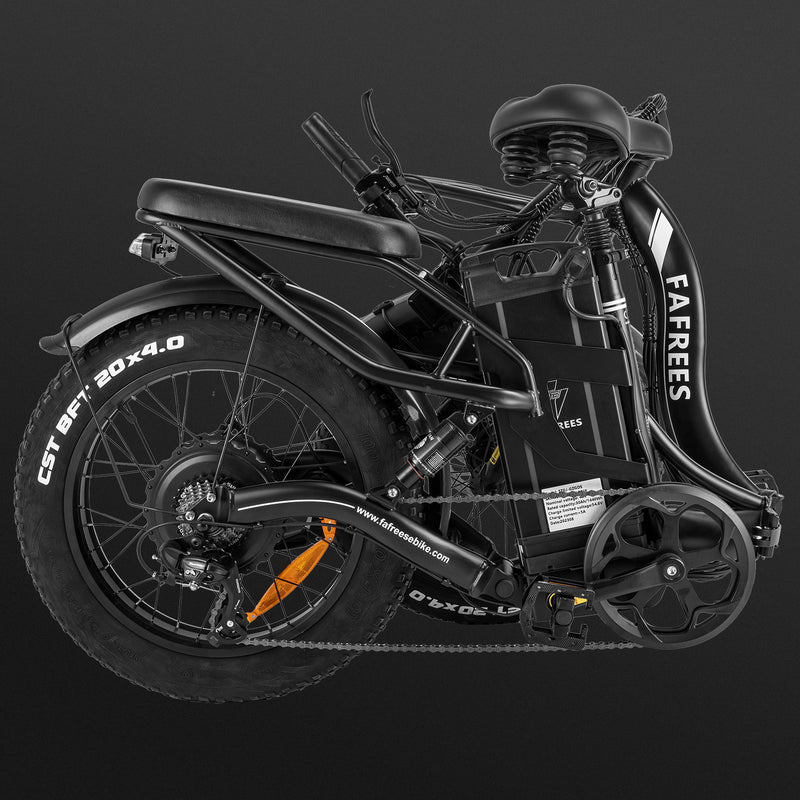

Triple Folding Design: Folds at the frame, handlebars, and pedals—making it ultra-compact, easy to store, and perfect for transport on any trip.

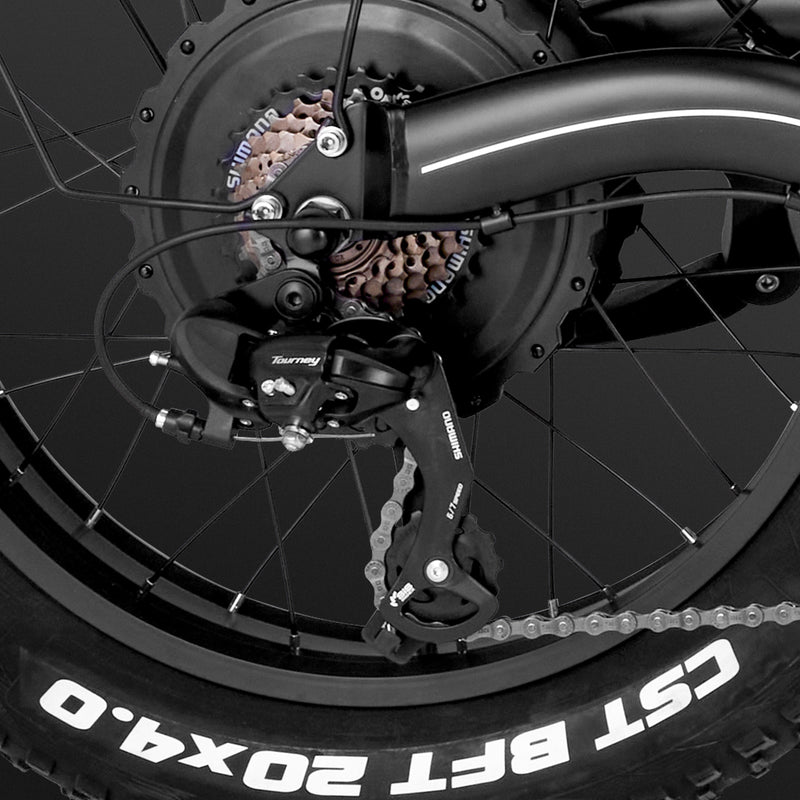

Shimano 7-Speed Gear Shift: Tackle hills, flats, or stop-and-go traffic with smooth shifting. Smart gear use can extend battery life by up to 15%.

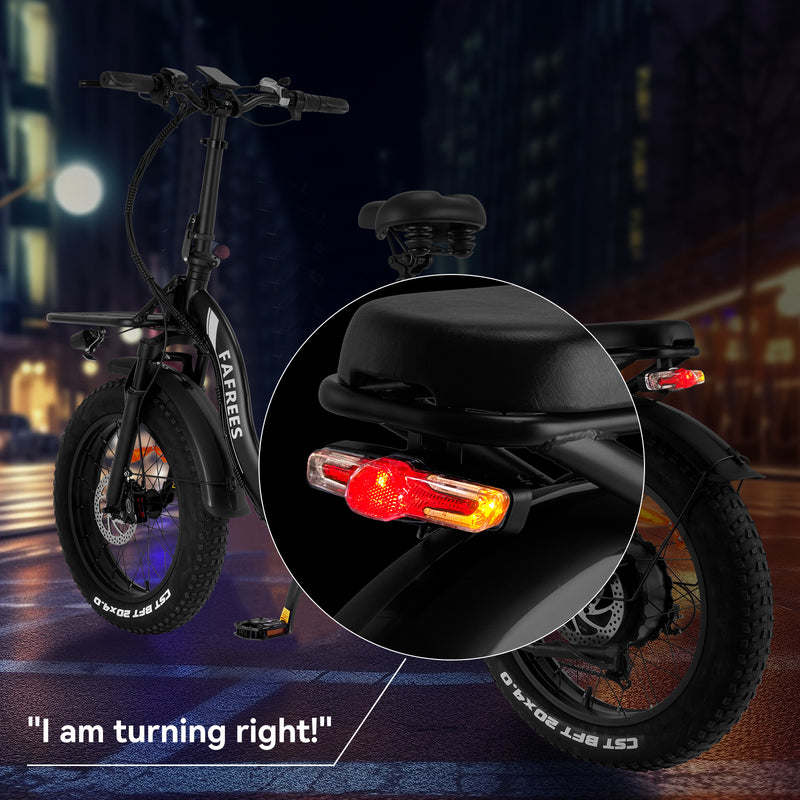

Lights with Turn Signals: Bright front and rear lights with turn signals keep you visible and predictable.

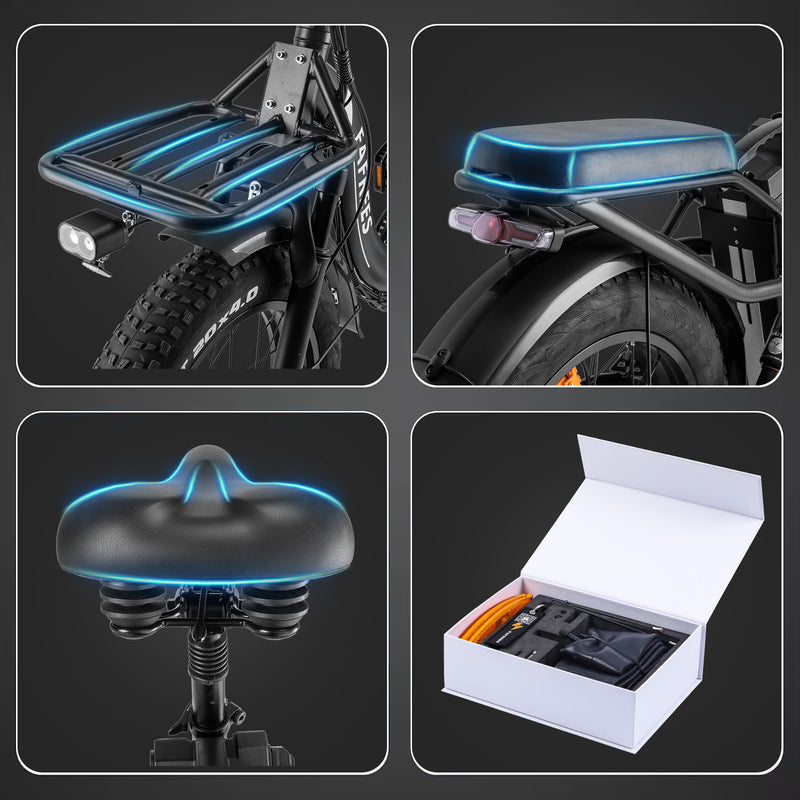

Front & Rear Cargo Racks: Built-in racks let you carry groceries, gear, or supplies with ease—ideal for commuting or weekend adventures.

All the Specs You Need to Know

Size and fit
Tech specs
Specifications

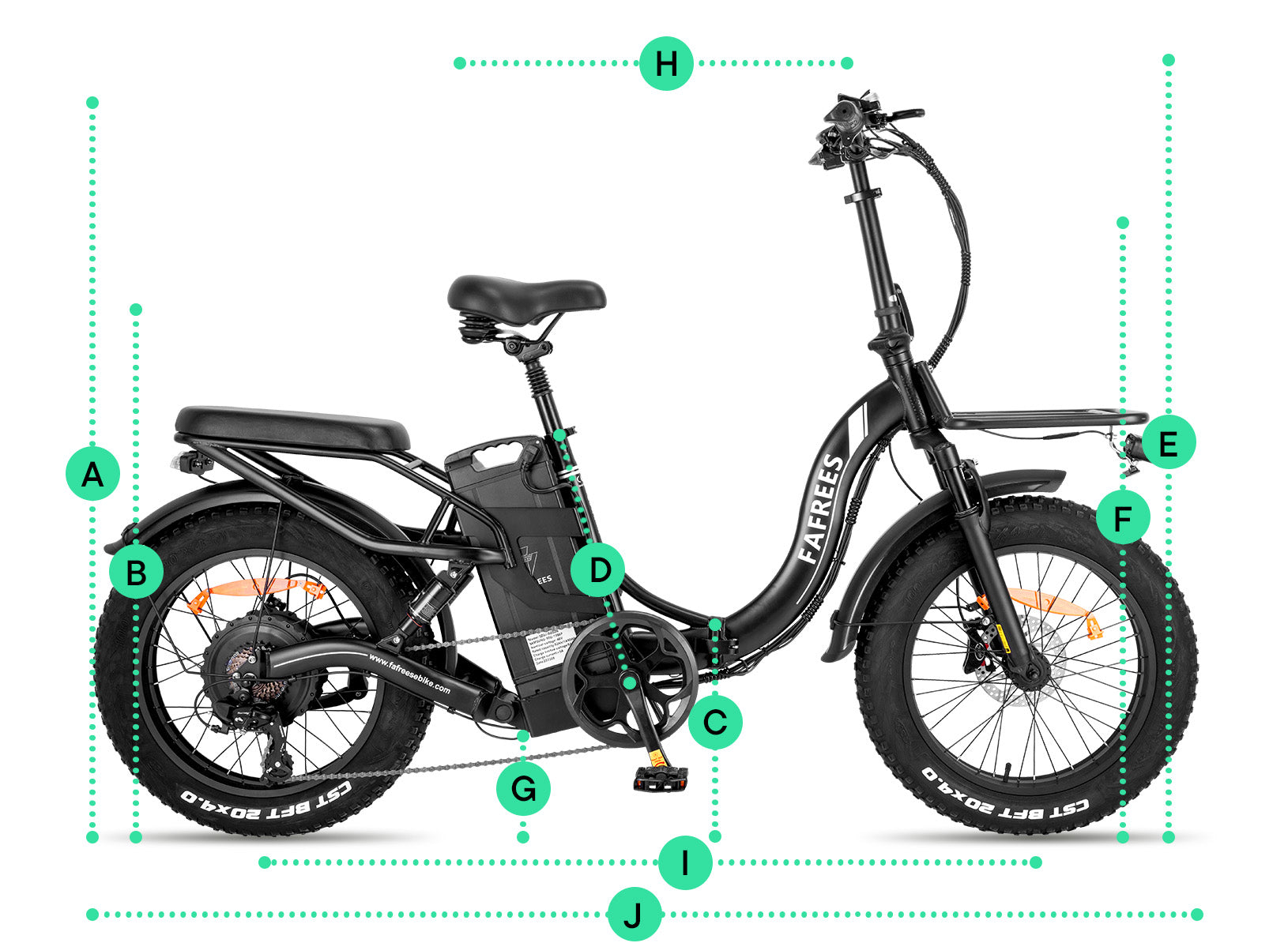

  • A: Max. Seat Height 106 CM
  • B: Min. Seat Height 86 CM
  • C: Standover Height 38 CM
  • D: Frame Size 43 CM
  • E: Max. Handlebar Height 132 CM
  • F: Min. Handlebar Height 116 CM
  • G: Bottom Bracket Height 17 CM
  • H: Top Tube Length 64 CM
  • I: Wheelbase Length 130 CM
  • J: Total Length 186 CM
  • Bike Width 63 CM
  • Folded Size 105*45*76 CM
GENERAL

Range

120-140km

Speed

Max 25km/h

Pedal Assist

3 levels

Folding Parts

Handlebar, Frame, Pedals

Bike Weight

49kg

Weight Capacity

150kg

Rider Height

165-210cm

Certifications

EN15194 + CE + E-Mark

Water Resistance

IPX4
ELECTRONIC

Motor

Rear drive, 48V, 750W(sustained) 980W(peak)

Motor Torque

65Nm

Battery

48V 30Ah, 1440Wh, removable lithium-ion, Samsung cells

Battery Weight

7.5kg

Charger

48V Output: 54.6V/ 3A

Charging Time

9 hours from 0% to 100%

Display

3.5" IPS color LCD, USB Port, backlit, IP65

Sensor

Cadence sensor

Lights

Front and rear lights (with turn signals)
COMPONENTS

Frame

6061 Aluminum Alloy

Handlebars

Aluminum 25.4mm, 620mm

Fork

Suspension fork, 50mm travel, without lockout

Brakes

Hydraulic disc brakes

Brake Rotor

160mm 6-bolt

Derailleur

Rear, Shimano 7-Speed

Shifter

Shimano 7 Speed Trigger

Wheels

20in, 13g, 36hole, double wall Aluminum

Tires

CST 20*4.0, 60tpi

Tubes

Butyl rubber, schrader valve

Chain

138L

Chain Ring

52T

Cassette

Shimano 7-Speed 14-28T

Crankset

152mm

Pedals

9/16" Foldable pedals

Saddle

Flip-up foam saddle

Seatpost

Suspension Seatpost, Ø 31.8mm, 400mm Length. 15mm travel

Kickstand

Included

Rear Rack

Included

Fenders

Included
PACKAGE INCLUDED

1 x F20 X-Max ebike

1 x Charger

1 x Tool kit

1 x User manual

1 x Gift box (Includes 1*Inner tube, 2*Valve caps, 4*Spokes, 2*wheel reflectors, 2*Battery fuses, 2*Brake linings, 1*key chain)
*To ensure timely delivery and consistent product quality, Fafrees reserves the right to replace components with alternatives of equal or higher quality when necessary. This will not affect the product’s intended performance or safety.
